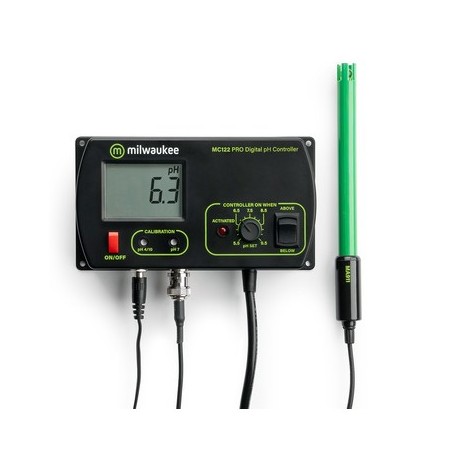

PH Controller 230VAC MC-122 Milwaukee View larger

PH Controller 230VAC MC-122 Milwaukee

90278020

New product

The new Milwaukee MC1200 aquarium pH controller with plug gives you the option of choosing whether the electrical output is active at a higher or lower pH than the set point. Wall mounting for continuous use.

More details

This product is no longer in stock

By buying this product you can collect up to 5 loyalty points. Your cart will total 5 loyalty points that can be converted into a voucher of 0,50 €.


118,50 €

More info

New model allowing to choose whether the electrical output is active at a pH higher or lower than the set point (User choice)! MC122 MILWAUKEE pH / Co2 controller. Wall mount for continuous monitoring. - Device for controlling the pH with CO2 dosing, comprising the controller, the socket block to connect the solenoid valve, the mains power supply, the electrode, a small screwdriver, a pH 7 calibration solution. - Alarm active when pH measured> or <Selection point (to be chosen) - PH electrode: MA911B / 2 included, power supply: 12V mains adapter supplied. - Device very easy to install and requires very little space. - Our devices have a visual alarm which indicates the exceeding of the setpoint threshold that you have set using the dial on the front of the device. In addition, the controller version is equipped with a relay output when the setpoint is reached to be connected to a PLC, gas generator (aquarium), a metering pump (industry), an audible alarm, etc. - Connect the 12 Volt adapter to the contact socket and to the pH meter. Connect the pH electrode to the BNC clamp of the pH meter. - Always remove the cap protecting the electrode before taking measurements. If the electrode is dry, insert the tip (+/- 2 and a half cm) in a rinsing solution for a few minutes to reactivate it. - Make sure that the phmeter is calibrated before measuring (see calibration procedures) - Immerse the tip of the electrode (+/- 2 and a half cm) in the solution to be measured. Turn on the instrument by pushing the on / off button and wait for the pH meter to stabilize. Now he will measure continuously. - A visual alarm will tell you when the measured value is higher than the set point. When the alarm is flashing, there is current in the socket for the solenoid valve. - The set point is selected by adjusting the central knob to the desired value. advise you for optimal accuracy to regularly recalibrate the pH tester, two calibration solutions (pH 4.01,7.01 or 10.01) are necessary for the recalibration of this device, you can combine the purchase of a pH tester and our solutions of calibration without additional shipping costs. Characteristics - Milwaukee - Model MC122 - Measuring range: 0.0 to 14.0 pH - Resolution: 0.1 pH - Accuracy: + / - 0.2 pH - Calibration: manual in 2 points (4.01, 7.01 or 10.01) - Regulation range: 3.5 to 7.5 pH and 5.5 to 9.5 pH - Alarm: if the value is lower or higher than the adjusted value - BNC electrode: MA911B / 2 (included) - Electrode cable length: 2m - 12v transformer included - 230V AC, 1A, 50Hz - Operating temperature: 0 to 50 ° C (32 to 122 ° F) RH 95% max - Controller dimensions: 148.5 x 82.5 x 32 mm - Weight: 180g Shipment content - Milwaukee pH Metering Controller / Tester (MC122) - 12V power adapter - BNC pH electrode MA911B / 2 (2m) - Milwaukee pH 7.01 calibration bag (20ml) - Milwaukee pH 4.01 calibration bag (20ml) - Calibration screwdriver - Power cord and plug (male) - User Manual
